LED Film screen--product features
1.Thin
• The screen is light in weight and has no pressure on the glass,
• Thickness: about 3mm, weight 3-6kg/ square meter
2. Transparent
• The structure is extremely simple, the permeability is high, does not affect the viewing line, and the permeability is as high as 85% or more
3. High flexibility
• The maximum unit size is limited to 960mm*3000mm,
• The maximum size and length of a single glass is 3 meters, without a power box in the middle.
• Can be bent and cut, not limited by size, can be flexibly designed according to customer needs Strong flexibility, can be attached to any curved glass/wall
4. Easy to install
• Easy to install, directly attached to the glass surface, and then just connect the signal and power supply
5. Large viewing angle
• Up to 140 degrees up, down, left, and right fields of view, no dead angle, no color cast, the image is always perfect and seamless
6. Cost saving
• Product installation does not require additional steel frame structure, does not need to change the appearance of ancillary buildings, effectively reducing transportation and installation costs
LED film screen - product parameters
| Project | Unit | parameter | parameter | parameter | parameter |
| Product No | | DM4/8 | DM6.5 | D10 | D20 |
| light source model | SMD | 2121 | 2121 | 2121 | 2121 |
| Density | dot/m2 | 31250 | 23668 | 10000 | 2500 |
| Module Size | mm | 960(H)X256(W) | 962(H)X208(W) | 960(H)X320(W) | 960(H)X320(W) |
| Screen compositon | High transparency,high temperature resistance,flame retardantPC |
| Weight | kg/m2 | 6 | 6 | 6 | 6 |
| Permeability | | | | | |
| Brightness | cd/m2 | ≥4000 | ≥5000 | ≥5000 | ≥3000 |
| Refresh | Hz | | | | |
| Scan | | stati | stati | stati | stati |
| Maximum power | W/m2 | | | | |
| average power | W/m2 | 300 | 300 | 200 | 200 |
| installation method | | | | | |
| maintenance method | Pre/Post Maintenance |
| Brightness Level | | 256 |
| Operating Voltage | | DC5V |
| gray scale | bit | 12- 16 |
| IP | IP | IP30 |
| Viewing angle | Degree | Horizontal≥150度, Vertical ≥ 150 |
| Input voltage | | degreesAC95V~240V |
| Operating temperature | °C | -20~65 |
| Working humidity | | 10% ~90RH |
| service life | 1 00000 hours |
Product Tags:
|
|

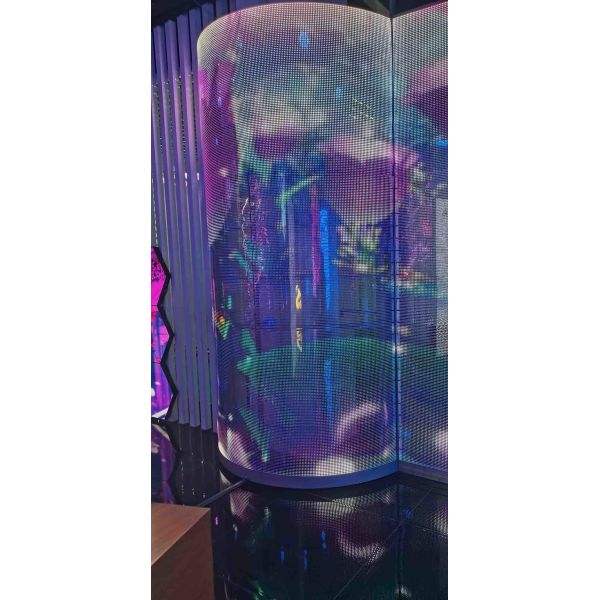

P4/8 Led Transparent Film Screen Outdoor Front Service Images
|
